Configure NSX-T log forwarding to vRLI using Postman

In this section, we are briefly discussing how to configure log forwarding in NSX-T Manager using Postman. This is the easiest method when it comes to a large environment where you have multiple NSX-T Managers and Edge nodes. Follow the below steps carefully.

Open the Postman application in your local system.

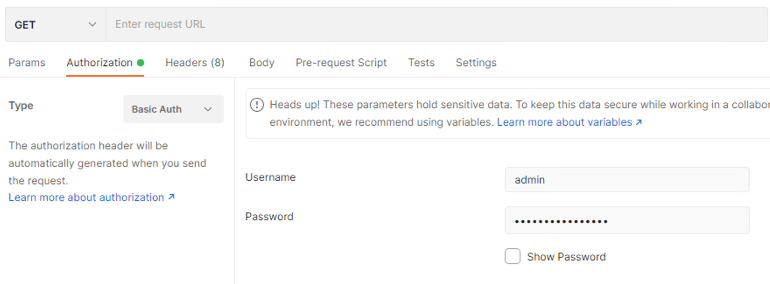

• The first thing you need to do is configure the Authentication: Go to the Authorization tab -> Select Basic Auth from the drop-down next to “Type” – > Enter the username and password of the NSX-T Manager

• On the Header tab, Enter the following
  • Key                  Content-Type
  • Key Value        application/json

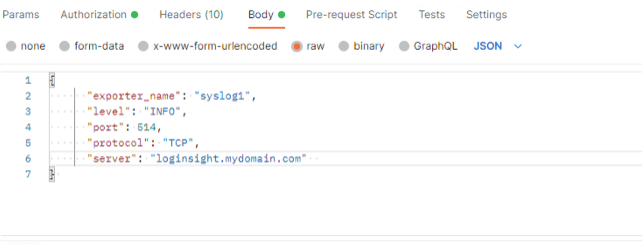

• On the Body tab, select the raw radio button and from the Text drop-down menu, select JSON

• In the Body Text box, enter the following to request body to configure the vRLI as a remote syslog server.
• Make sure in the “sever” section you provide your log insight FQDN.

{
“exporter_name”: “syslog1”,
“level”: “INFO”,
“port”: 514,
“protocol”: “TCP”,
“server”: “loginsight.mydomain.com”
}

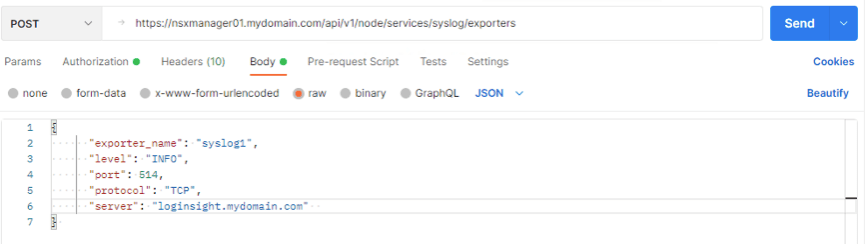

• Send the request to each NSX-T Manager
  • In the request pane, provide the URL query for the NSX-T Manager and click Send.
  • Select POST as the HTTP request method
  • Ensure you are entering your NSX-T manager FQDN or IP Address correctly. URL: https://nsxmanager01.mydomain.com/api/v1/node/services/syslog/exporters

• Repeat this step by sending the log configuration request to the URL of each of the remaining NSX-T Managers.

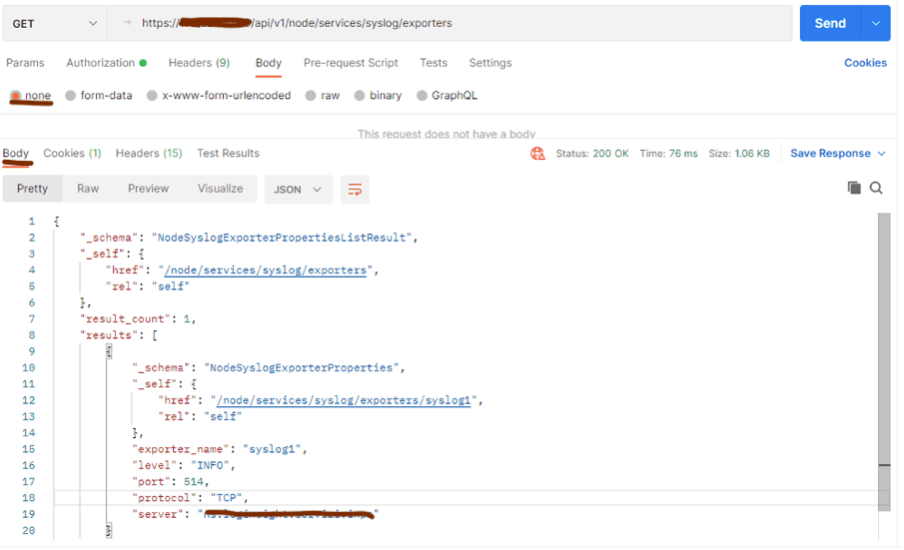

• Verify the Syslog configuration on each NSX-T Manager
  • In the request pane, configure the following settings and click send.
  • HTTP Request Method : GET
  • URL: https://nsxmanager01.mydomain.com/api/v1/node/services/syslog/exporters
  • Select none radio button in the Body Tab
  • When the NSX-T Manager appliance sends a response back, on the Body tab, you see the following message.

• Verify that the value of the server element is your log insight FQDN

• Repeat this step by sending the log verification request to the request URL of each of the remaining NSX-T Managers.
• Verify that logs are received in vRealize Log Insight Dashboards and Interactive Analysis sections.

This way you will save a lot of time when compared to configuring the log forwarding manually in each NSX-T environment. Thanks for reading.
